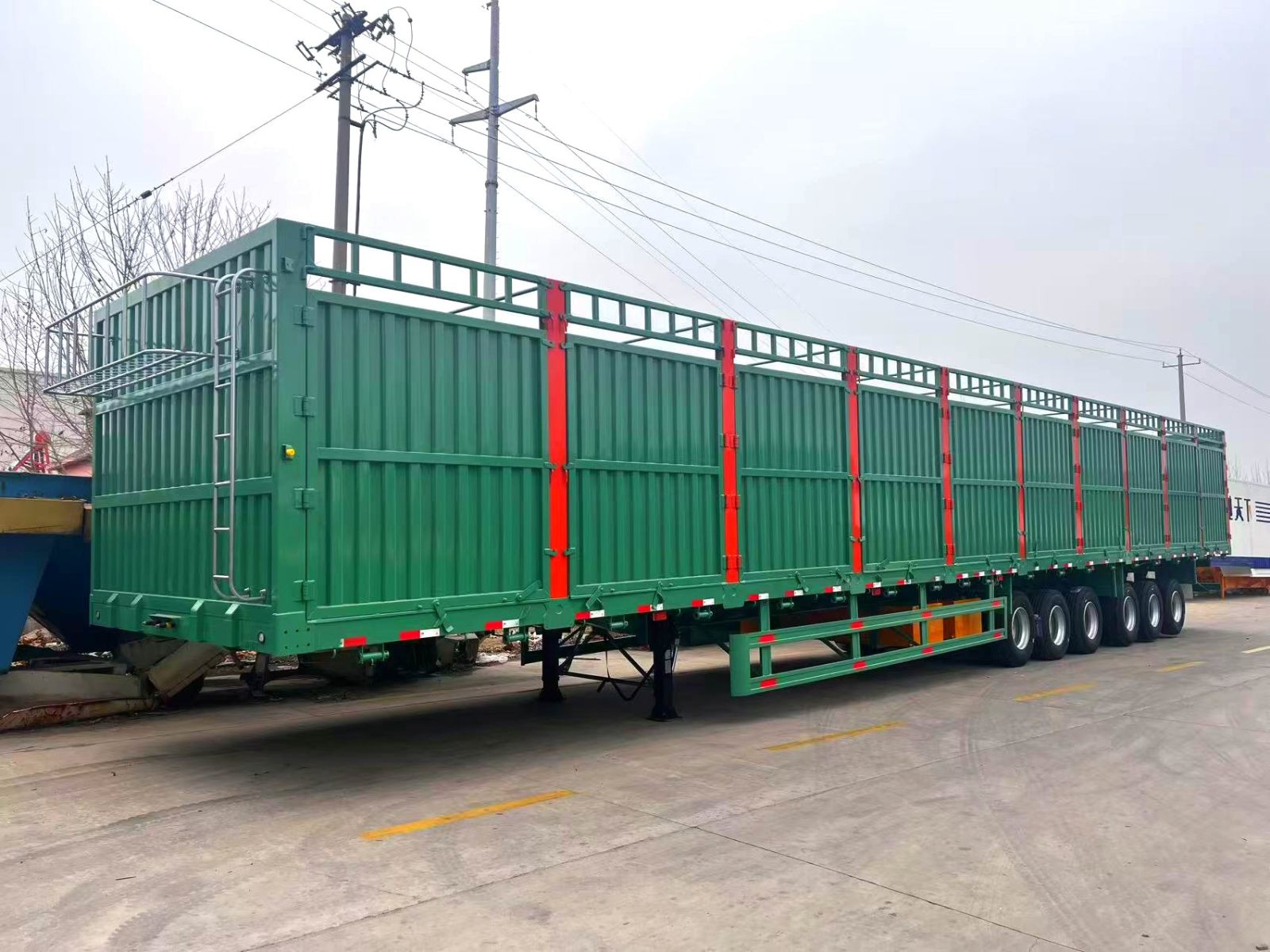

6 Axle Fence Semi-Trailer

6 Axle Fence Semi-Trailer

ZW Group Stake Semi Trailer is built for agricultural logistics, livestock transport, grain, and bulk cargo. Its flexible configuration maximizes payload while reducing maintenance needs for international fleets. Premium materials, reinforced connection points, and automated manufacturing provide fatigue resistance, stable performance, and long service life on harsh roads and under heavy loads.
Get a quote

6 Axle 100T Fence Semi Trailer | Heavy Duty Fence Semi Trailer Cargo Transport Solution

6 Axle Fence Semi-Trailer

Technical Specifications

SpecificationDetails
Load Capacity100 tons
Axle Configuration6 axles (3 tandem groups)
Total Length13.6 – 16 meters
Loading Deck Length12 – 14 meters
Width2.5 – 3 meters
Loading Deck Height1.2 – 1.5 meters
Side Fence Height0.8 – 1.2 meters
Ground Clearance300 – 400 mm
SuspensionMechanical leaf spring or optional air suspension
Tires12R22.5 or 295/80R22.5
Landing GearHeavy-duty double-speed jacks (24 – 30 tons capacity)
Coupling50-mm kingpin
LightingLED lights with reflectors
Safety FeaturesAnti-skid deck, tie-down points (D-rings), side markers


6 Axle Fence Semi-Trailer

Main Features

  • High-strength reinforced chassis designed for extreme Heavy Duty Cargo Trailer applications

  • 6-axle configuration ensures superior load distribution and long-distance stability

  • Detachable stake fence system improves flexibility for bulk and pallet cargo

  • Optimized structural welding enhances fatigue resistance and service life

  • Custom Stake Trailer design available for different cargo height and density requirements

  • Anti-deformation side wall structure reduces cargo shifting during transportation

  • Compatible with Livestock Transport Trailer applications with optional enclosure upgrades

  • Advanced braking compatibility improves safety on steep and rough road conditions

  • Factory-direct production ensures consistent quality control and cost efficiency

  • Fully customizable engineering options from a professional Fence Semi Trailer Manufacturer ZW Group


6 Axle Fence Semi-Trailer

6 Axle Fence Semi-Trailer

6 Axle Fence Semi-Trailer

Available Configurations

The Fence Semi Trailer supports multiple factory customization options to meet different logistics requirements. Customers can select 3-axle or 4-axle configurations depending on payload demand and road regulations in target markets.
Suspension systems include mechanical leaf spring suspension for cost efficiency, air suspension for high-value cargo protection, and heavy-duty bogie suspension for extreme load conditions.
Cargo body configurations include single-layer or double-layer stake structures, with optional removable side panels for flexible loading scenarios. Fence height can be adjusted according to cargo type such as livestock, grain, or construction materials.
Floor options include patterned anti-slip steel plate or flat reinforced steel deck. Additional configurations such as container twist locks, reinforced cross members, and extended cargo length are available for customized applications.

Why Choose ZW Group

ZW Group operates advanced automated production lines specializing in Fence Semi Trailer and Cargo Semi Trailer manufacturing. Each trailer is produced under strict quality control procedures including structural welding inspection, load testing, and component verification to ensure long-term durability.
As a professional Fence Semi Trailer Factory, we integrate globally recognized components such as FUWA, BPW, and WABCO to ensure reliable performance and easy maintenance worldwide.
Our engineering team provides customized design solutions for different markets, including Africa, the Middle East, and South America, ensuring compliance with diverse road and transport conditions.
With strong B2B export experience, ZW Group delivers not only high-quality trailers but also full technical support, spare parts supply, and long-term partnership value for global logistics operators.

Factory Show

6 Axle Fence Semi-Trailer

Transportation

  1. Bulk cargo, without dismantling any components, shipped as a whole. Advantage: Moderate price, complete shipment, but the product is susceptible to seawater erosion.
  2. Container transportation is cheap and can effectively protect machinery during transportation. But to disassemble the machinery,you need to assemble it yourself after receiving the goods.
  3. Frame container transportation is similar to container transportation, but frame containers can transport ultra-high machinery.
  4. Ro-ro transportation. The product is in the cargo hold and has strong protection, but the price is expensive.
6 Axle Fence Semi-Trailer

FAQ

A:

A fence semi trailer is designed for transporting a wide range of loose and bulk cargo such as agricultural products, livestock feed, vegetables, fruits, bagged goods, and light industrial materials. The side fence structure provides safety protection while allowing easy side loading and unloading, making it highly efficient for short and medium-distance logistics.

A:

Fence semi trailers are ideal for goods that do not require fully enclosed protection but still need containment during transport. Common cargo includes grains, corn, fertilizer, construction materials, packaged goods, and even some light machinery. The flexible structure makes it suitable for both agricultural and commercial transport applications.

A:

Yes. The fence height, spacing, and structure can be customized based on customer requirements. Options include detachable side panels, reinforced vertical posts, higher fence designs for bulk cargo, and different rear door configurations. Customization helps optimize loading capacity and cargo security for different markets.

A:

Axle configurations depending on payload requirements. Suspension options include mechanical leaf spring suspension for cost efficiency and air suspension for smoother transport and better cargo protection. Axle brands such as FUWA and BPW are also available.

A:

Fence semi trailers are built with high-strength steel main beams and reinforced fence structures to ensure durability under frequent loading conditions. The design provides strong resistance to impact and vibration, making it suitable for long-term use in agricultural, construction, and logistics environments.
