3 Axle Sidewall Semi Trailer

3 Axle Sidewall Semi Trailer

ZW Group 3 Axle 40ft Side Wall Semi Trailer handles bulk cargo, agricultural products, and palletized freight. Detachable drop-sides allow use as an open-top trailer or flatbed, improving flexibility at ports and logistics hubs. Its high-strength steel chassis with robotic welding provides stable load distribution, torque resistance, and reliable performance on rough roads with lower maintenance needs.
Get a quote

3 Axle 40FT Side Wall Semi Trailer | Heavy Duty High Side Cargo Transport Trailer

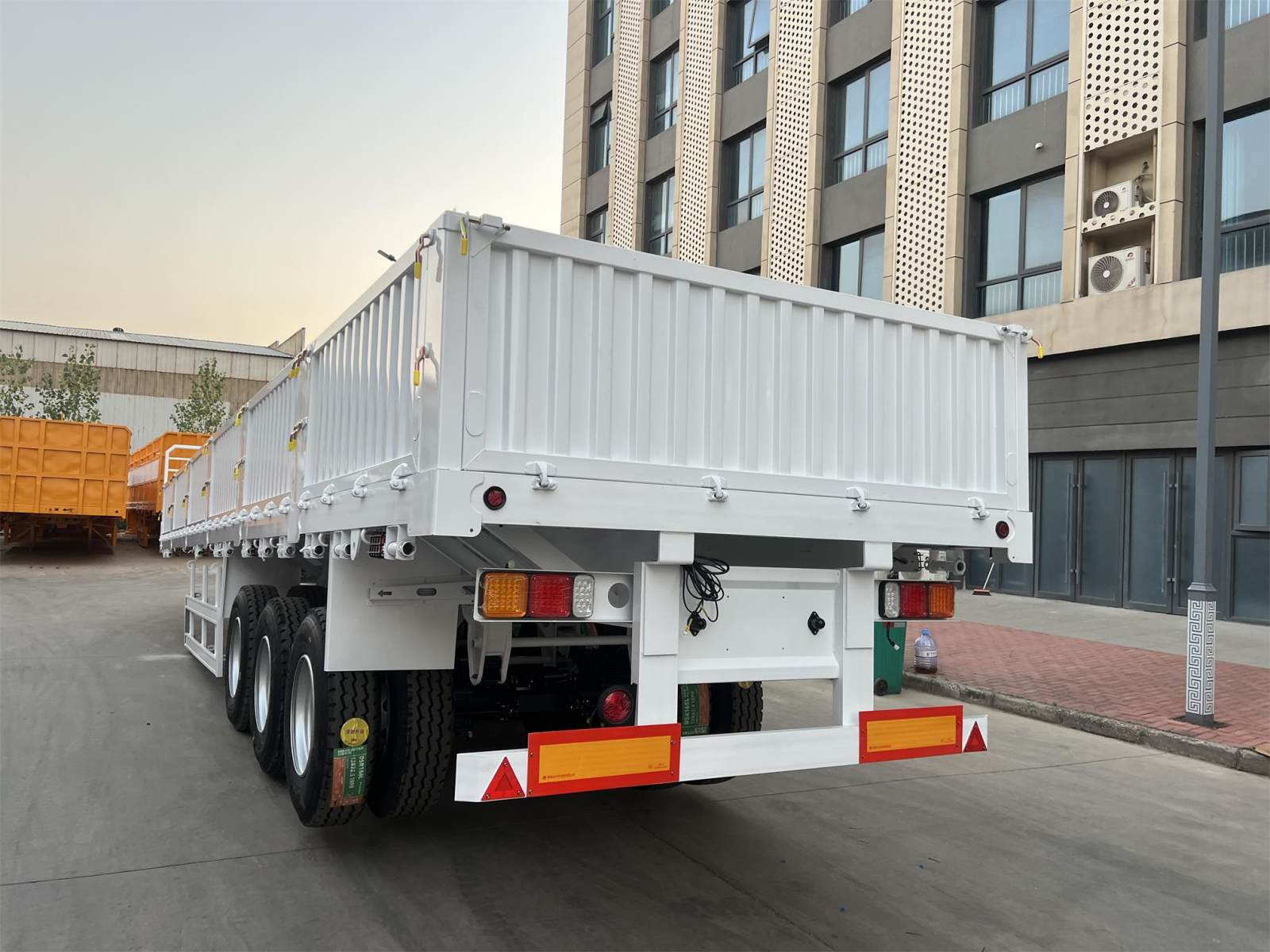

1791447078966732874567364608.jpg@!w400

Technical Specifications

ParameterSpecification Details
Model Type3 Axle 40ft Side Wall Semi Trailer
Overall Dimensions12,500mm x 2,500mm x 1,600mm (Customizable)
Side Wall Height600mm / 800mm / 1000mm / 1200mm
Rated Payload40,000 kg - 60,000 kg
Main Beam MaterialQ345B High-Tensile Steel, Submerged Arc Welded
Axle Configuration3 x 13T / 16T FUWA or BPW Axles
Suspension SystemHeavy-Duty Mechanical Leaf Spring / Air Suspension
Braking SystemDual-line Pneumatic Braking with WABCO ABS
Tire Specification12R22.5 Tubeless Tires (12 Pcs + 1 Spare)
Landing GearJOST D200T Two-Speed Manual Operation
Twist Locks4 / 8 / 12 Optional ISO Container Twist Locks

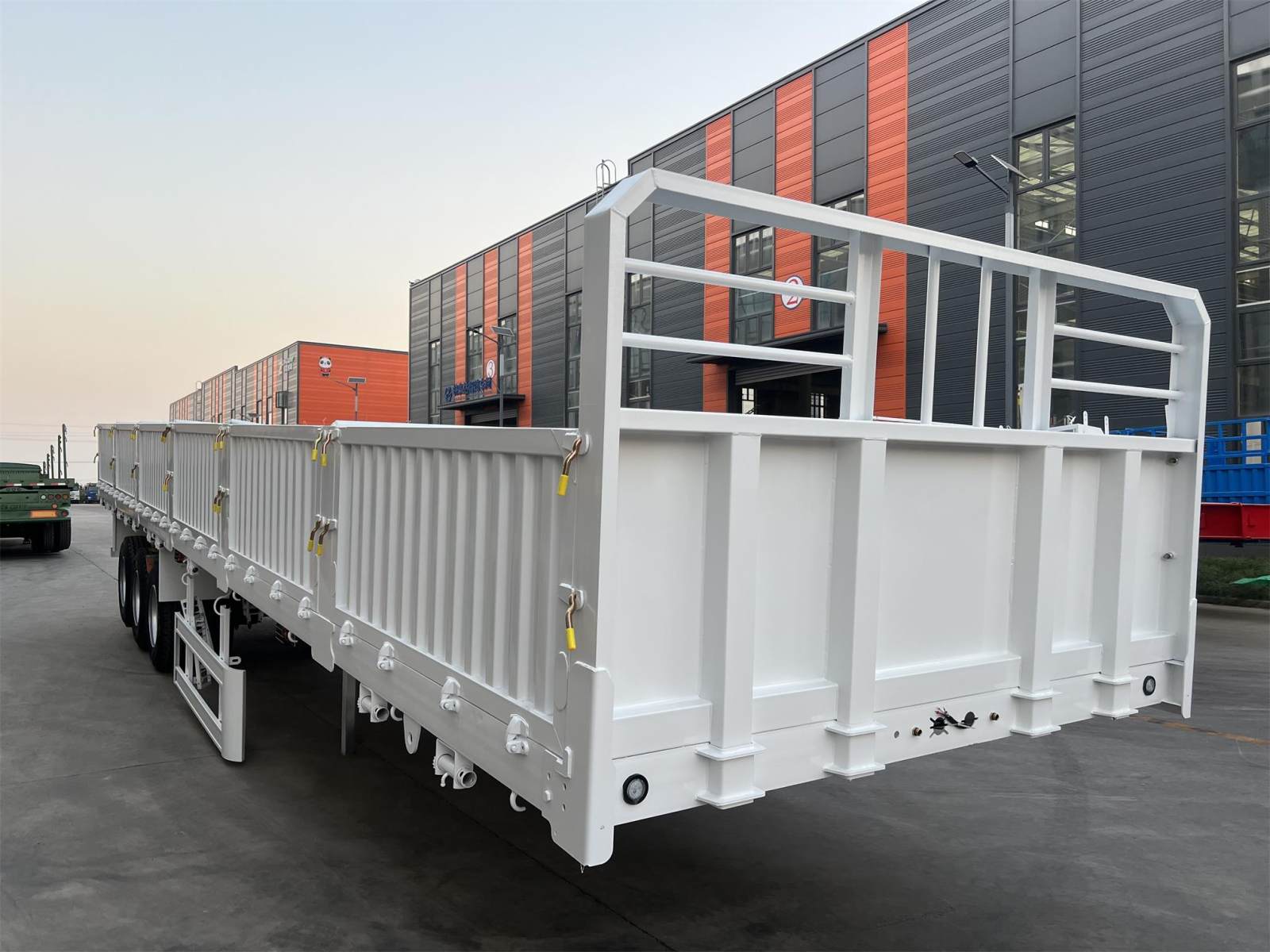

1791447080966732885090873344.jpg@!w400

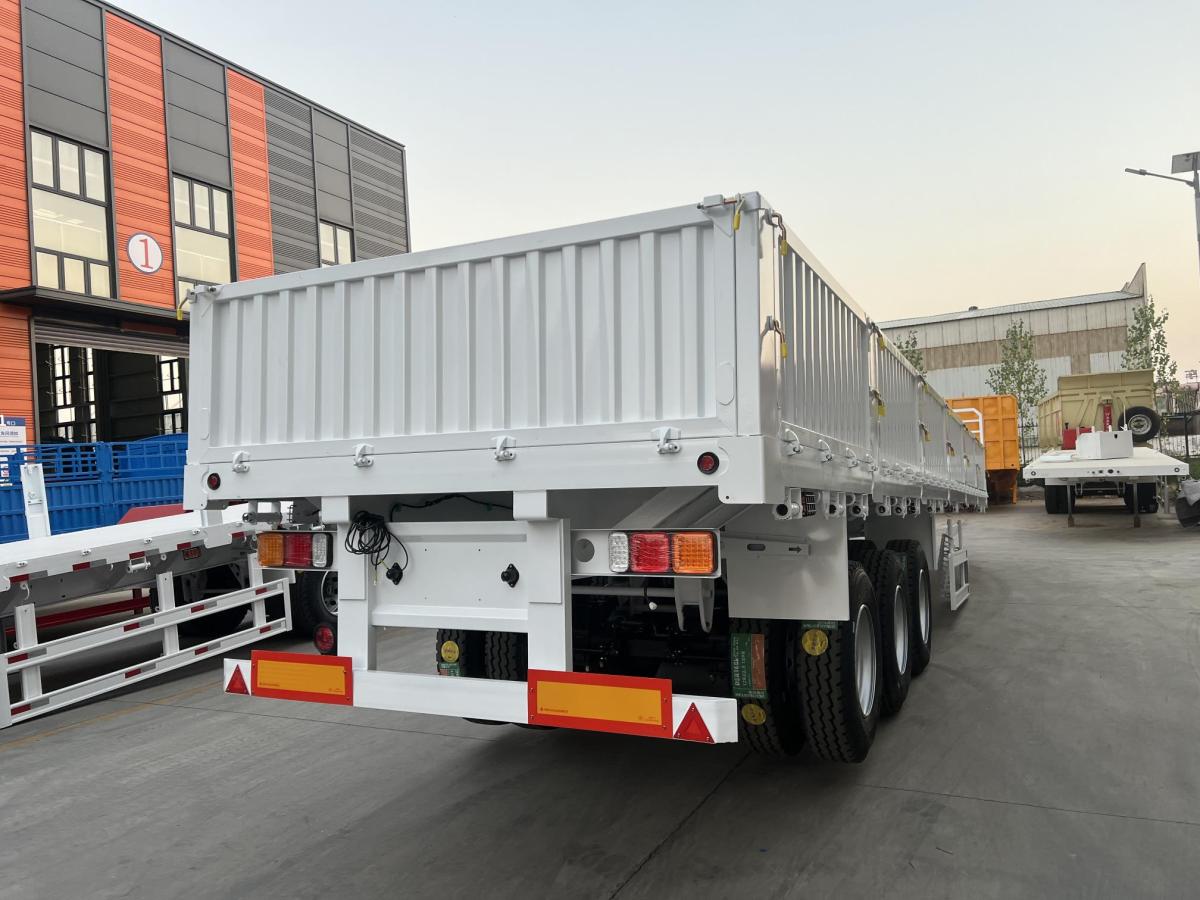

1791447076966732865155325952.jpg@!w400

Main Features

  • High-strength side wall structure designed to prevent cargo spillage and deformation during transit

  • Reinforced main beam using optimized I-beam design for superior load-bearing performance

  • Detachable or foldable side panels for flexible loading and unloading operations

  • Advanced welding technology ensures structural integrity and long-term durability

  • Anti-corrosion coating system enhances resistance to moisture, salt, and harsh environments

  • Heavy-duty locking system improves cargo safety and operational stability

  • Multiple suspension options for adaptation to different road conditions and payload requirements

  • Premium axle configurations from FUWA or BPW ensure reliable performance and reduced maintenance cost

  • High-quality tire options designed for long-distance and heavy-load transportation efficiency

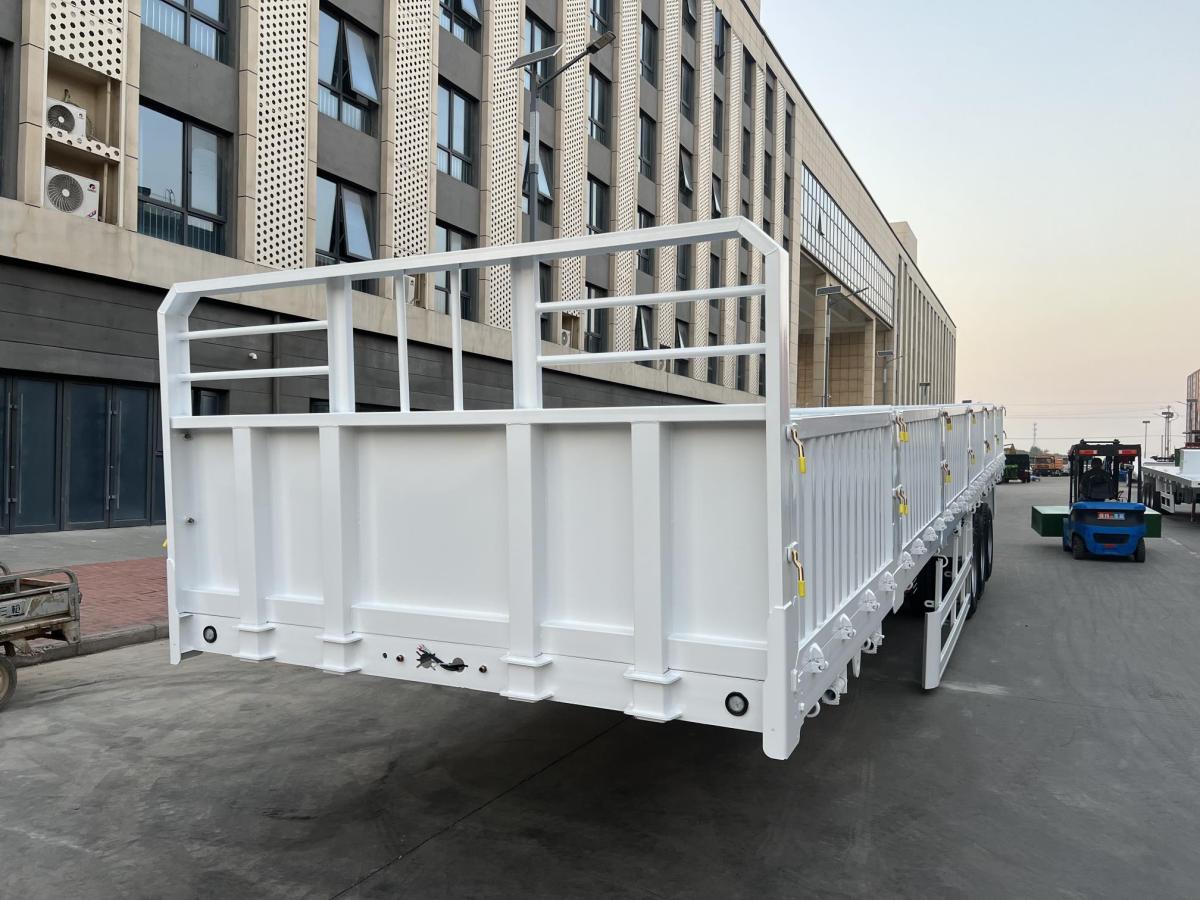

1791447074966732856603140096.jpg@!w400

Available Configurations

  • Side Wall Height: Standard options include 600mm, 800mm, 1000mm, and 1200mm, tailored to specific bulk goods densities.
  • Number of Axles: Available in 2-axle, 3-axle, or 4-axle configurations depending on payload requirements and local transport regulations.
  • Suspension Options: Choose between heavy-duty mechanical leaf spring suspension, air suspension for fragile cargo, or bogie suspension for off-road environments.
  • Axle Brands: Standard configuration features genuine FUWA or BPW axles, with optional customized brand selections upon request.
  • Tire Specifications: Equipped with premium 12R22.5 tubeless tires or 11.00R20 radial tires, with options for single or twin tire setups per axle.

Why Choose ZW Group

  • Factory-Direct Manufacturing: ZW Group eliminates middleman costs by offering direct-from-factory pricing on every Custom Side Wall Trailer. Our state-of-the-art production facility ensures strict quality control at every stage of fabrication, guaranteeing that each vehicle meets rigorous global standards before dispatch.
  • Flexible OEM/ODM Capabilities: Our dedicated engineering team provides tailored design modifications to match your specific logistical demands. From dimensional adjustments to component upgrades, we deliver specialized transport equipment that maximizes your fleet efficiency and profitability.
  • Global Export and Technical Support: As a trusted international partner, ZW Group offers complete compliance with global shipping regulations and customs documentation. Every trailer is backed by a comprehensive warranty and responsive after-sales technical assistance to ensure continuous uptime for your operations.

Factory Show

3 Axle Sidewall Semi Trailer

Transportation

  1. Bulk cargo, without dismantling any components, shipped as a whole. Advantage: Moderate price, complete shipment, but the product is susceptible to seawater erosion.
  2. Container transportation is cheap and can effectively protect machinery during transportation. But to disassemble the machinery,you need to assemble it yourself after receiving the goods.
  3. Frame container transportation is similar to container transportation, but frame containers can transport ultra-high machinery.
  4. Ro-ro transportation. The product is in the cargo hold and has strong protection, but the price is expensive.
3 Axle Sidewall Semi Trailer

FAQ

A:

A side wall semi trailer is designed for transporting medium-density bulk cargo and palletized goods that require additional side protection compared to a flatbed trailer. It is widely used for carrying construction materials, agricultural products, packaged goods, and general freight in logistics and distribution operations.

A:

Compared to a fence semi trailer, a side wall semi trailer has solid steel or aluminum side panels instead of vertical posts and railings. This provides better cargo containment, improved stability during transport, and reduced risk of goods falling or shifting, making it more suitable for packaged and palletized cargo.

A:

Side wall semi trailers are suitable for cement bags, grain, fertilizer, building materials, boxed goods, and light industrial products. They offer a balance between open loading flexibility and partial cargo protection, making them a versatile choice for mixed freight transport.

A:

Yes. Side wall semi trailers can be customized according to cargo requirements. Options include different side wall heights, removable or fixed panels, reinforced steel side boards, rear door configurations, and various axle and suspension combinations to match payload capacity and road conditions.

A:

The main advantages include improved cargo safety compared to flatbed trailers, better versatility than fully enclosed box trailers, and easier loading compared to curtain side designs. It provides a practical and cost-effective solution for transporting a wide range of general cargo in different logistics scenarios.
